Parent Layer: MBTA Communities Legislation

Name: MBTA Commuter Rail One Half Mile Buffer

Display Field: Shape_Leng

Type: Feature Layer

Geometry Type: esriGeometryPolygon

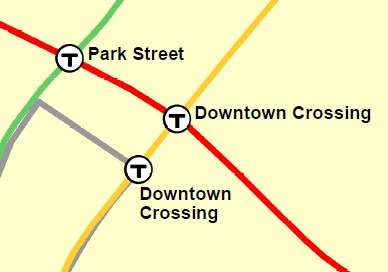

Description: The MBTA Rapid Transit Station layers represents the station stops on the five subway, streetcar/trolley and Silver Line bus lines in the Massachusetts Bay Transportation Authority’s rapid transit rail network. Stations are contained in a point feature class named MBTA_NODE. The five ‘T’ lines - Blue, Green, Orange, Red and Silver - are represented with linework in the layer MBTA_ARC. The layers were developed by the Central Transportation Planning Staff (CTPS), with additional editing by MassGIS based on current information from mbta.com. The MBTA Commuter Rail lines are included in the TRAINS_ARC layer. It should be noted that the Silver Line actually consists of buses, not trains, but the line is included in this layer because the MBTA includes it as part of its Subway system map (see https://www.mbta.com/schedules/subway).

Copyright Text: Central Transportation Planning Staff, mbta.com, MassGIS

Default Visibility: false

MaxRecordCount: 10000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 170552.34200000018
YMin: 820833.9514000006
XMax: 272444.6736000002
YMax: 950875.6446000006
Spatial Reference: 26986  (26986)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [255, 170, 0, 255]
Outline:
Style: esriSLSSolid
Color: [255, 170, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
